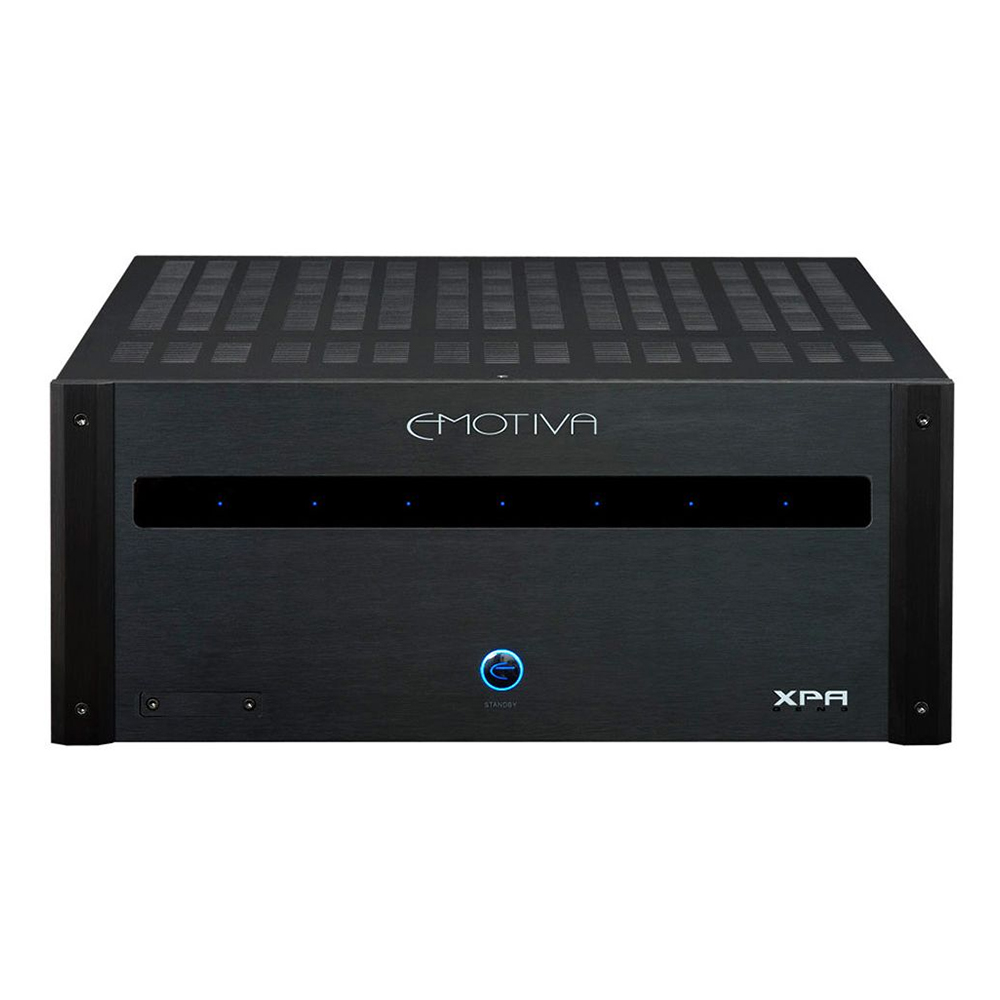

Emotiva XPA-DR1 Monobloc Power Amplifier

Differential Reference Performance And Sound Quality

• High-powered, fully-differential, low distortion amplifier design delivers massive dynamics with smooth precision, offering superbly detailed sound and incredibly natural imaging.
• A true monoblock, where each chassis houses the power supply and amplifier circuitry for a single channel, for the absolute ultimate in performance and channel separation.

Sound Quality First

Designed first and foremost to sound superb in all types of audio systems with all types of music.

Low noise, low distortion, wideband amplifier design with traditional Class A/B output stage ensures smooth, detailed sound, without a trace of strain or harshness.

Totally stable with real world speakers in real systems; not just on a test bench.

Modern Efficient Circuit Design

Optimized Soft-Switch Class H™ power supply topology delivers improved efficiency without compromising audio performance.

Switched Mode Power Supply (SMPS) offers all of the performance of a traditional linear power supply, with improved efficiency and reliability, and reduced overall weight.

Quality Construction

Top quality parts and construction throughout for years of reliable trouble-free service.

Heavy steel 4RU chassis with milled aluminum faceplate offers strength and rugged good looks.

Solid machined gold-plated RCA input connectors provide a reliable connection with a wide variety of audio interconnects.

Fully modular construction allows you to purchase as many channels as you need today, and then add more channels later when and if you need them.

Designed, assembled, and tested in the U.S.A. at our plant here in
Franklin, Tennessee

Flexible Signal Connections and Power Options

Gold plated five-way speaker binding posts with clear shields allow you to use a wide range of speaker cables with bare wires, lugs, or banana plugs.

Choice of balanced or unbalanced input for each channel, independently controlled by reliable metal toggle switches.

Remote trigger input and output allow the XPA-DR1 to control and be controlled by other trigger-enabled equipment.

World compliant AC line voltage operation enables the XPA-DR1 to operate on any line voltage between 100 VAC and 250 VAC 50/60Hz.

Standard IEC power inlet fits all standard IEC power cables and most custom audiophile power cables.

Protection

Audiophile-grade fault protection is entirely transparent under normal listening conditions, yet protects the amp and your other equipment from virtually all common faults.

The XPA-DR1 is protected from AC line faults by a rugged resettable rear panel push-button circuit breaker.

Full five-year warranty ensures that you’ll be able to enjoy your XPA-DR1 amplifier for years to come.

Key Features

• 650 watts RMS into 8 Ohms, and 1000 watts RMS into 4 Ohms, with less than 0.1% THD
• Modular, high-powered, fully-differential, low distortion amplifier design with traditional Class A/B output stage
• Optimised Soft-Switch Class H  power supply topology delivers improved efficiency without compromising audio performance
• Switched Mode Power Supply (SMPS) offers all of the performance of a traditional linear power supply, with improved efficiency and reliability and reduced overall weight
• Heavy steel 4RU chassis with milled aluminium faceplate
• Choice of balanced or unbalanced input for each channel, independently controlled by reliable metal toggle switches
• Solid machined gold-plated RCA input connectors provide a reliable connection with a wide variety of audio interconnects
• Gold plated five-way speaker binding posts with clear shields allow use of a wide range of speaker cables with bare wires, lugs, or banana plugs
• Remote trigger input and output
• Designed, assembled and tested in the USA
• Power: 100/250V AC @50/60Hz
• Status LEDs: Blue, 1 per Channel
• Circuit Breaker: Button to Reset
• Dimensions (WxHxD): 17″ x 8″ x 19″
• Weight: 15.1 kg
