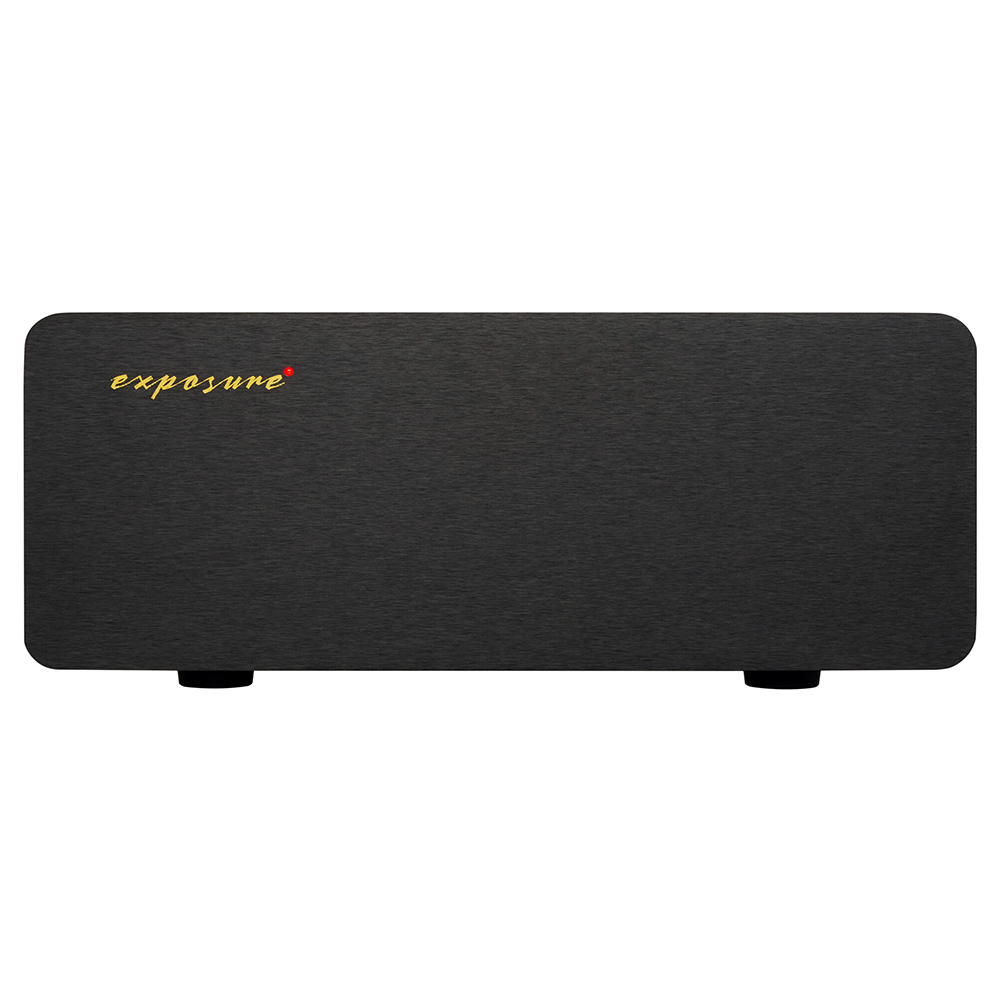

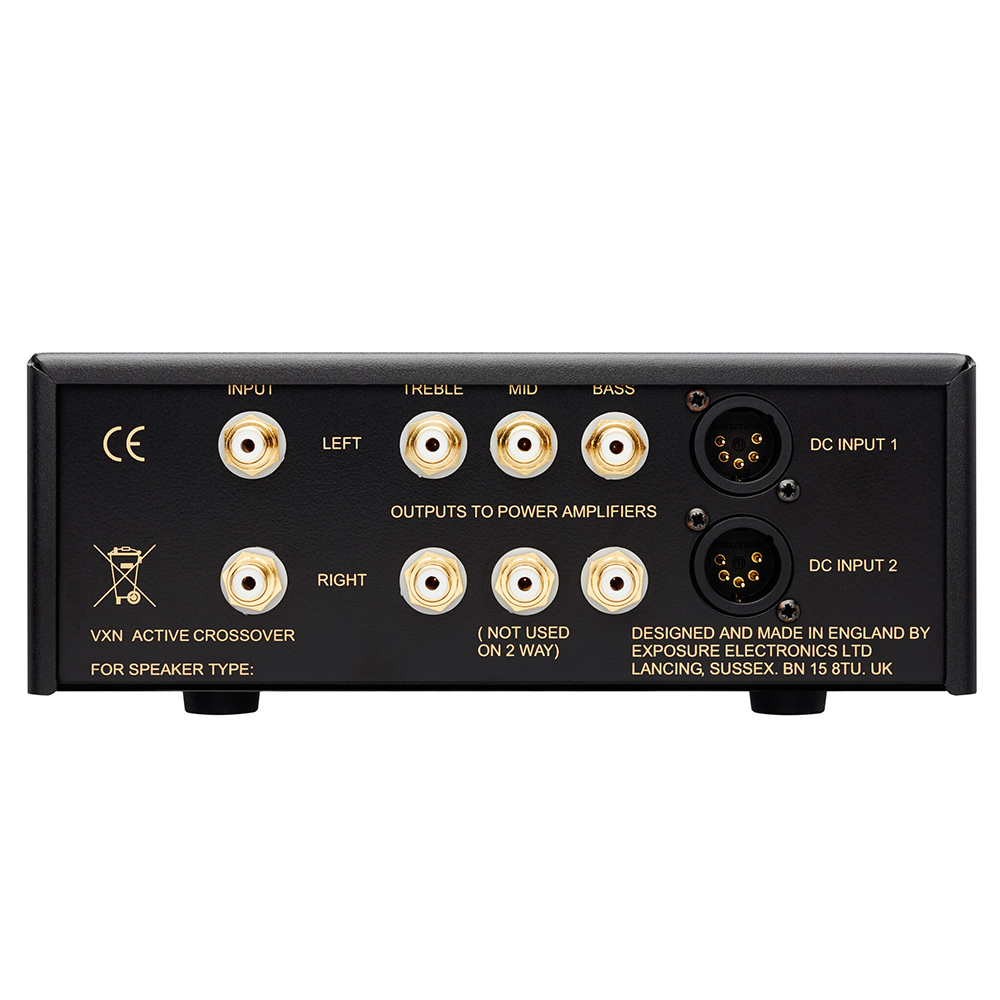

Exposure VXN 2 Way Active Crossovers

Initially developed for active operation with top-of-range Kudos Audio Speakers, upgrading your Loudspeakers using an external Active Crossover, which by-passes the Speakers’ internal Passive Crossovers, you can optimise your Amplifiers’ output and greatly improve your Speakers’ performance.

Key Features

• All active circuitry using discrete transistors – no ICs in the signal path
• Very low noise regulators used
• Level setting by DIP switches for good sound and repeatability
• Very high quality capacitors used in the signal path, all 1% tolerance for accurate setting of frequency roll off
• Dual mono construction using separate PCBs
• All aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields

Key Specification

To be powered by an Exposure VXN Power Supply only

• Roll off rates and level settings to match the koudspeaker in use (to be specified at time of order)
• Treble: 12-18dB per octave high pass filer
• Mid: 12-18dB per octave high pass filter, 6-18dB per octave low pass filter
• Bass: 6-18dB per octave low pass filter
• Maximum Output Level (Any Output): 7V RMS
• Bass Output THD @ 100Hz 2V Output: <0.005%
• Mid-Range Output THD @ 1KHz 2V Output: <0.005%
• Treble Output THD @ 10KHz 2V Output: <0.005%
• Signal To Noise Ratio Ref 2V output (Any Output): >100dB
• Output Impedance @ 1KHz (Any Output): 50 Ohms
• Level settings of Treble & Mid Range by DIP switches inside the unit (one bank per channel for Treble & Mid-Range).  Range -0.5dB to -6.5dB (specials to order)
• Power Consumption: <10W
• Dimensions (WxHxD): 218 x 89 x 34 8mm
• Net Weight: 2 kg
• Gross Weight: 3 kg
