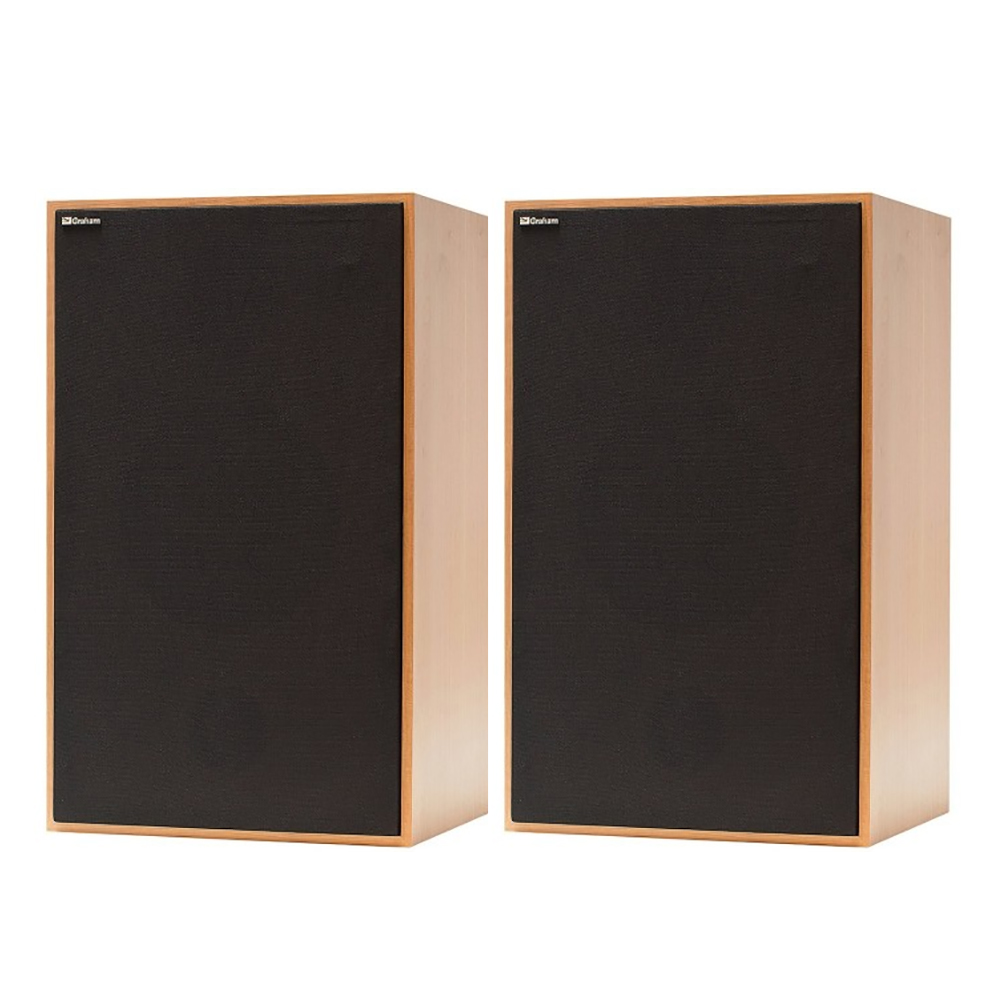

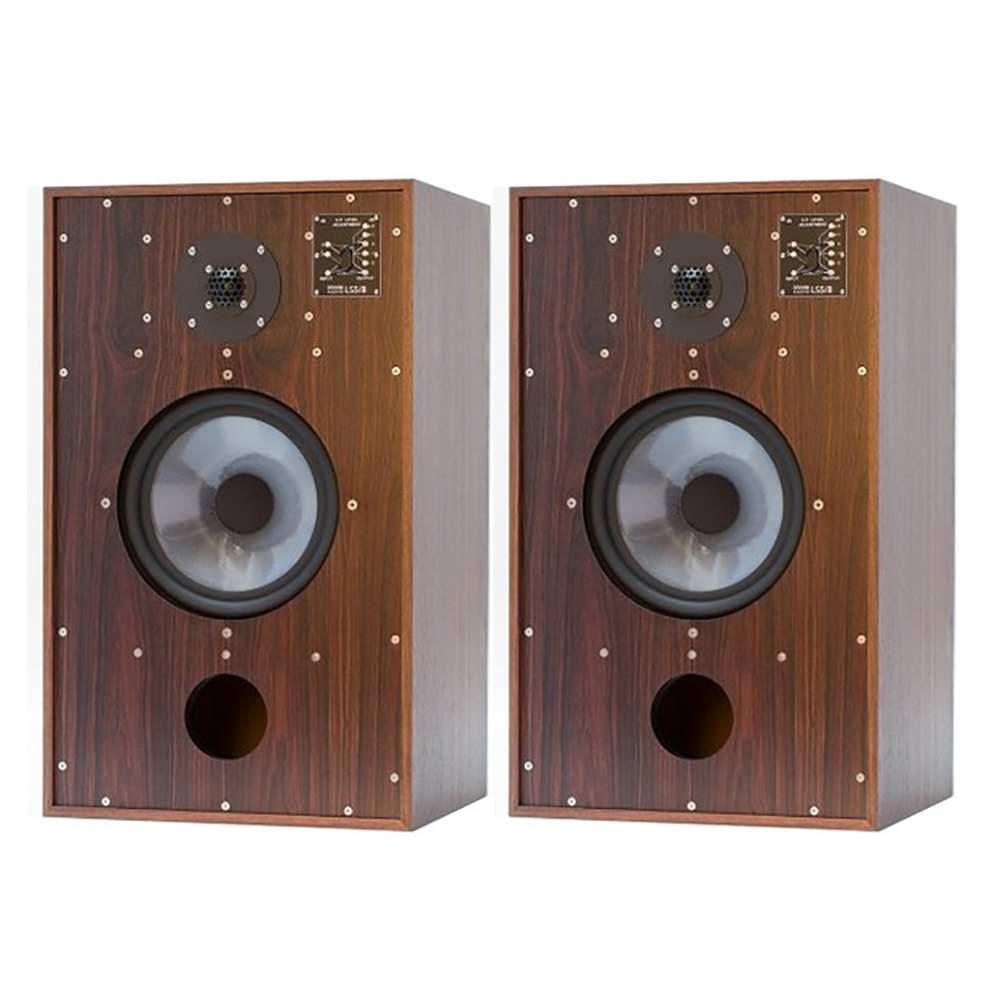

Graham Audio LS5/8 Stand Mount Speakers
Range Price range: £7,785 through £8,452
Description
The LS5/8 is the BBC’s flagship design and was developed because of the need for higher sound pressure levels and greater transparency and consistency than the ageing LS5/5 offered. This was the first BBC loudspeaker to use a polypropylene diaphragm which, being lighter than Bextrene, offered greater efficiency and lower colouration. A carefully researched cone profile enables the unit to work successfully well into the mid-range.
After many months of intensive development, the Graham Audio LS5/8 refines the concept further. Designed in conjunction with Derek Hughes and Volt Loudspeakers and manufactured under license in the UK, it features a unique 12 inch bass/mid unit that is married to the same 34mm Audax tweeter that is used in the LS5/9.
The design retains the same mid-range clarity and balance of the LS5/9, but offers an extended bass response and greater authority at high level in larger rooms. The continuity of sound quality between the two designs means that engineers can move between the two different loudspeakers with complete confidence during the recording and mastering process.
The LS5/8 was originally conceived as an active design, but Derek Hughes has designed a passive crossover that greatly improves on the resolution and imaging of the original design while still conforming to the demanding BBC specification.
Key Features
- System: 2 Way, reflex loading
- Enclosure: Thin wall construction, birch plywood
- Frequency Response: 40Hz – 16kHz, ±3dB
- Nominal Impedance: 8Ω
- Sensitivity: 89dB SPL (2.83V, 1m)
- Maximum Output: Over 110dB for a pair at 2m
- Bass/Mid-Range: 300mm Diaphnatone polypropylene
- Tweeter: Son Audax HD13D34H
- Recommended Amplifier Power: 50 – 250 watts unclipped programme
- Dimensions: 76 x 46 x 40 cm
- Weight: 34 kg
