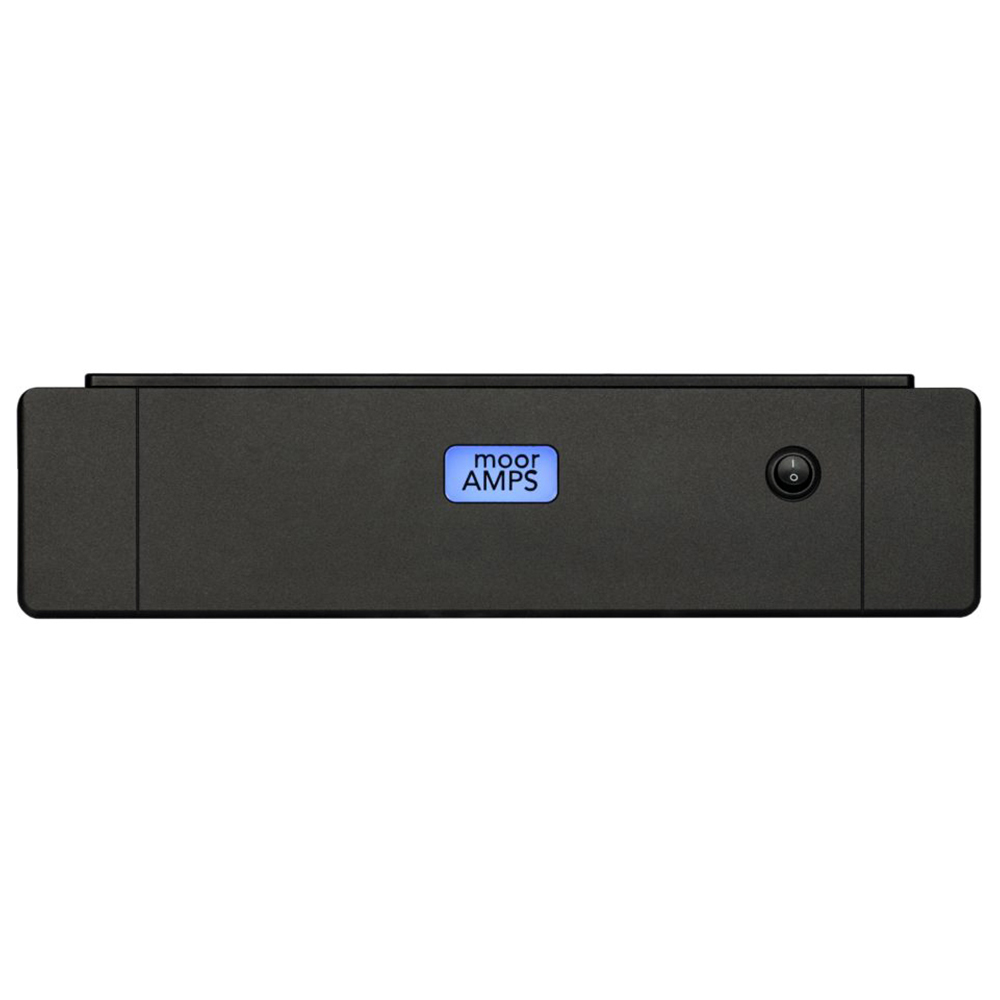

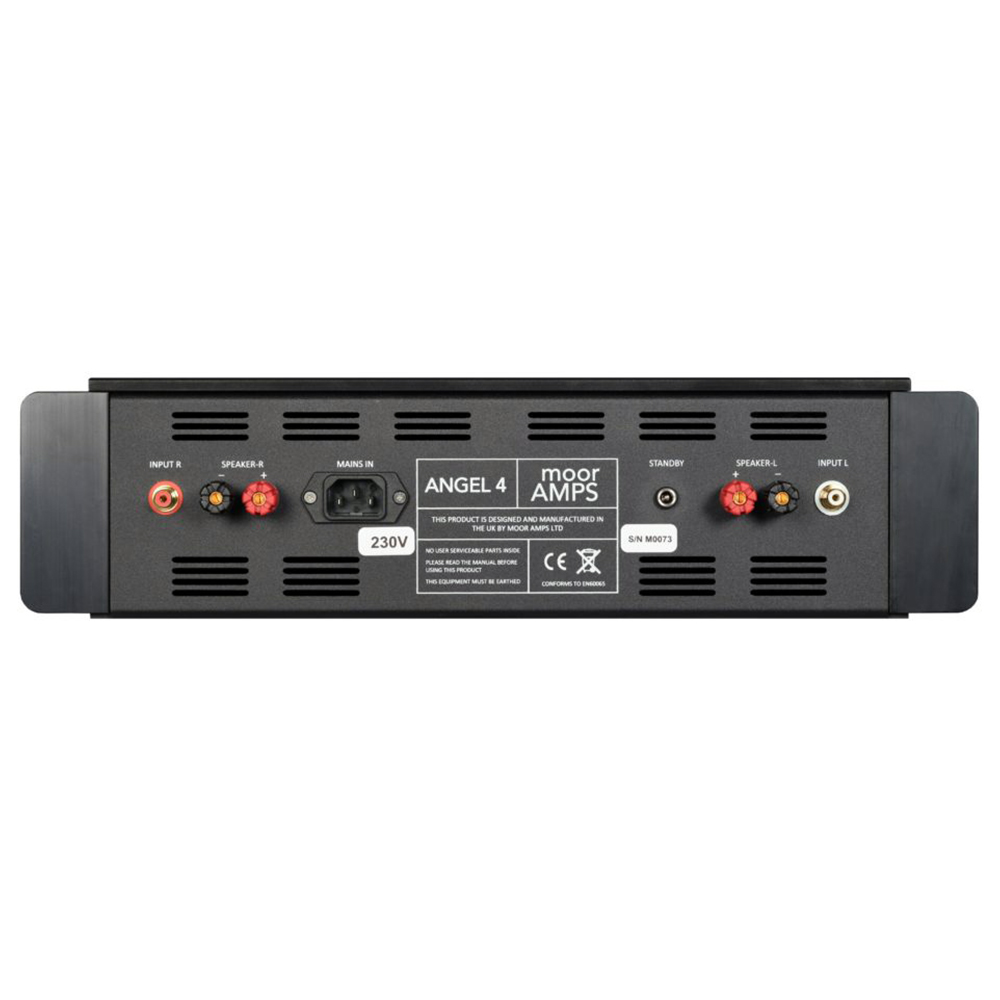

Moor Amps Angel 4 Dual Mono Power Amplifier (EX-DEMO)

Moor Amps extend their low-feedback philosophy to the power supplies. The low-feedback Amplifier is fed with incredibly pure, high current DC rails from low-feedback regulators.

Output Power:

• 75W RMS per channel into 8 ohms
• 150W RMS per channel into 4 ohms

Distortion (With Typical Loudspeaker Load):

• THD: < 0.01%
• IMD: < 0.01%

Loudspeaker Outputs:

• Nominal: 4 ohms – 16 ohms
• Connections: Wired, Spade or 4 mm plug

Inputs:

• RCA (phono) inputs:
• 1V rms for full output
• Input Impedance 15k ohm

Frequency Response:

5Hz to 50kHz +/- 1dB

Protections:

• Short Circuit or Overload: +/-15A max
• Overtemperature: +55C
• Undertemperature: +5C

Mains Power:

• IEC inlet cable for 230V AC 50Hz mains
• Optional 115V AC 60Hz version available

Power Consumption:

• Maximum 650VA
• Idle 50VA
• Standby < 0.5W

Measurements – Amplifier (Unpackaged) Dimensions:

• (WxDxH) 430 x 340 x 120 mm
• Weight 16 kg

Measurements – Amplifier (Packaged) Dimensions:

• (WxDxH) 490 x 420 x 170 mm
• Weight 18 kg
